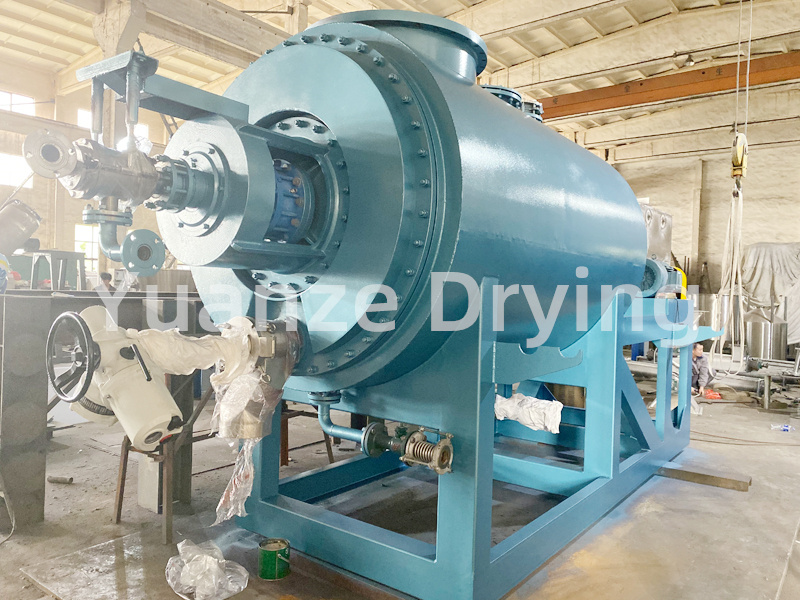

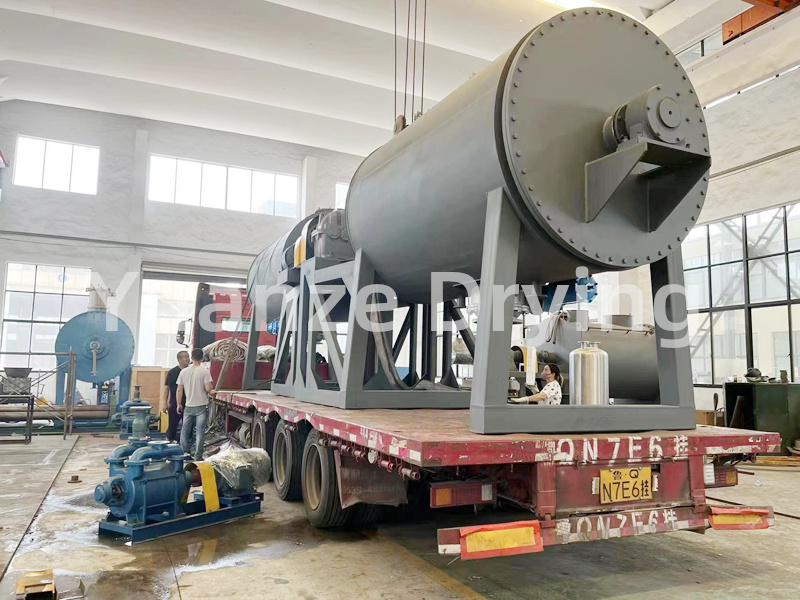

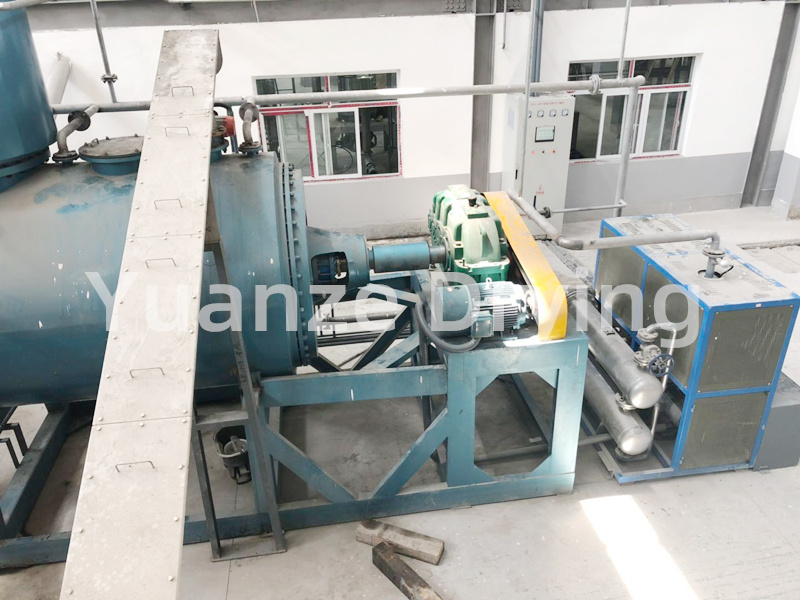

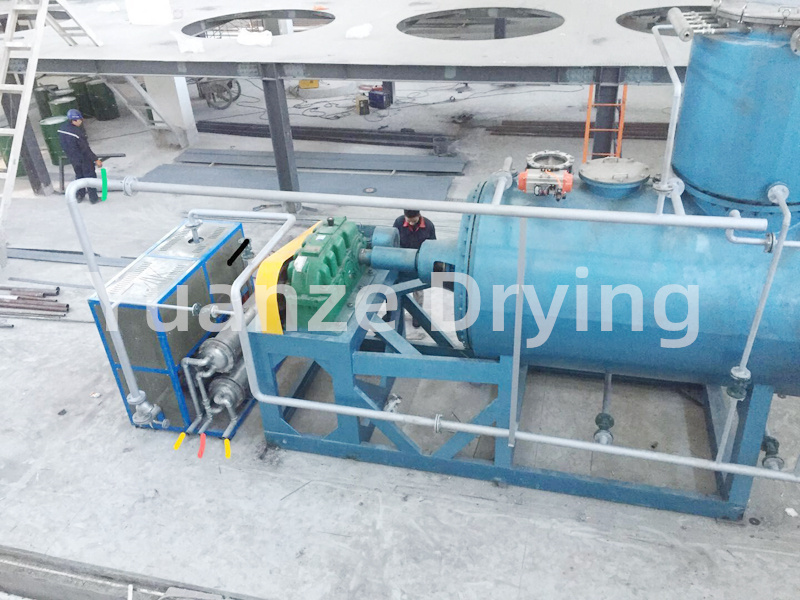

ZB series vacuum rake dryer

ZB series vacuum rake dryer

This machine adopts sandwich heating and internal stirring, with a large heat transfer surface and high thermal efficiency. This machine is equipped with stirring to form a continuous circulation of materials in the cylinder, further improving the uniformity of material heating. This machine is equipped with stirring, allowing for smooth drying of slurry, paste, and paste materials.

Description

Product Introduction

The ZB series vacuum rake dryer is a novel horizontal intermittent vacuum drying equipment. Wet materials are evaporated through conduction and equipped with a scraper stirrer to continuously remove the material on the hot surface, and it forms a circulating flow inside the container. After the water evaporates, it is pumped out by a vacuum pump. This machine adopts a large-area sandwich heating method, with a large heat transfer surface and high thermal efficiency. It is equipped with stirring to form a continuous circulation state of materials in the cylinder, further improving the uniformity of material heating, and enabling smooth drying of slurry, paste, and paste materials.

The middle of the vacuum rake dryer body is cylindrical, and the inside and outside of the body are divided into three layers. The heating medium in the middle jacket can be thermal oil circulation (pressure<0.3mpa gauge pressure) or steam (pressure<0.3mpa gauge pressure). The outer layer is made of ultra-fine glass wool, which has good insulation effect and low energy consumption. The inner layer is filled with materials, especially suitable for drying materials that are at risk of oxidation and heat sensitive materials, without damaging crystalline materials during the drying process, The strict restriction on materials containing metal ions and the requirement for the recovery (or toxicity) of volatile (or toxic substances to be discharged further demonstrate its superiority

The vacuum rake dryer is easy to operate and convenient for entering and exiting materials, greatly reducing the labor intensity of workers. At the same time, it also reduces the environmental pollution of materials during the drying process, improves product quality, and meets the requirements of the drug management standard "GMP".


Equipment characteristics

1. This machine adopts a simultaneous heating method of interlayer and internal stirring, with a large heat transfer surface and high thermal efficiency.
2. This machine is equipped with stirring to form a continuous circulation of materials in the cylinder, further improving the uniformity of material heating.
3. This machine is equipped with stirring, allowing for smooth drying of slurry, paste, and paste materials.


Scope of application

1. The following materials are dried in industries such as pharmaceuticals, food, and chemicals.
2. Suitable for paste, paste, and powder materials.
3. Heat sensitive materials that require low-temperature drying.
4. Easy to oxidize, explosive, highly irritating, and highly toxic materials.
5. Require the recovery of materials containing organic solvents.


Technical Parameter



projectModel
nameunitZB-500ZB-750ZB-1000ZB-1500ZB-2000ZB-3000ZB-4000ZB-5000ZB-6000
working volumeL30045060090012001800240030003600
heating aream23.24.45.16.38.110.612.314.216.5
stirring speedrpm8~18
powerKw45.55.57.57.5111518.522
Sandwich design pressureMpa0.3
Pressure inside the cylinderMpa-0.092~-0.096
Note: The amount of water evaporation is related to the characteristics of the material and the drying temperature. As the product continues to be updated, parameter changes are not subject to prior notice.
