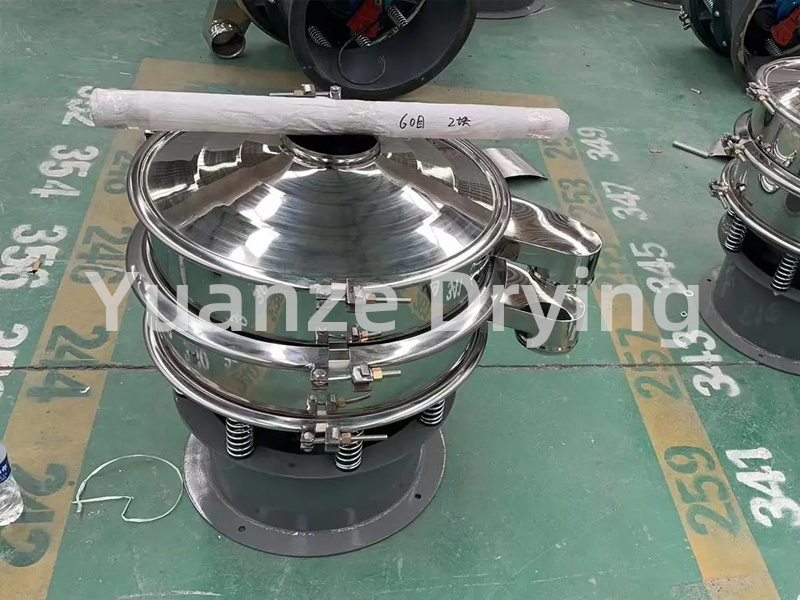

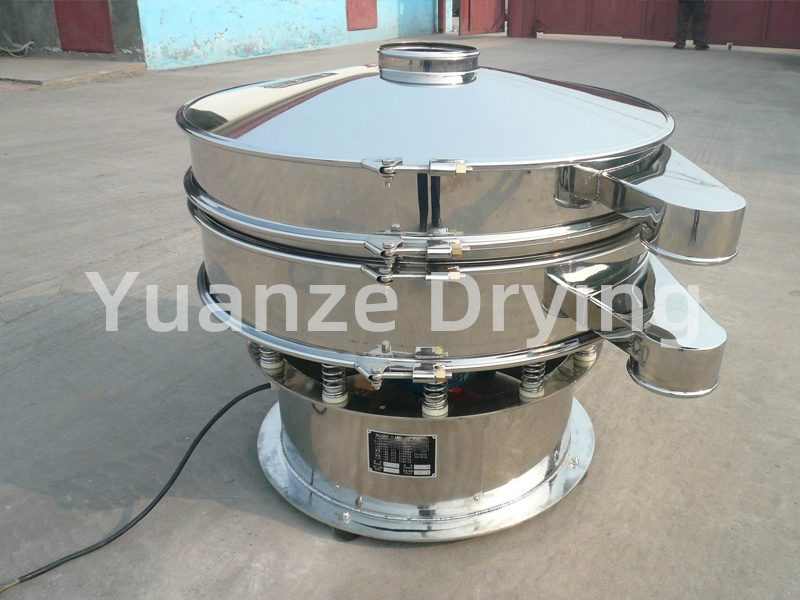

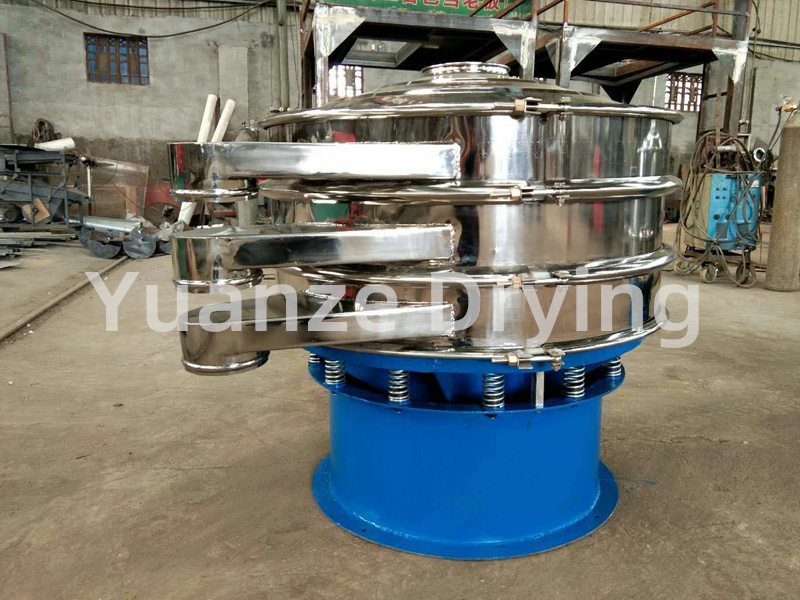

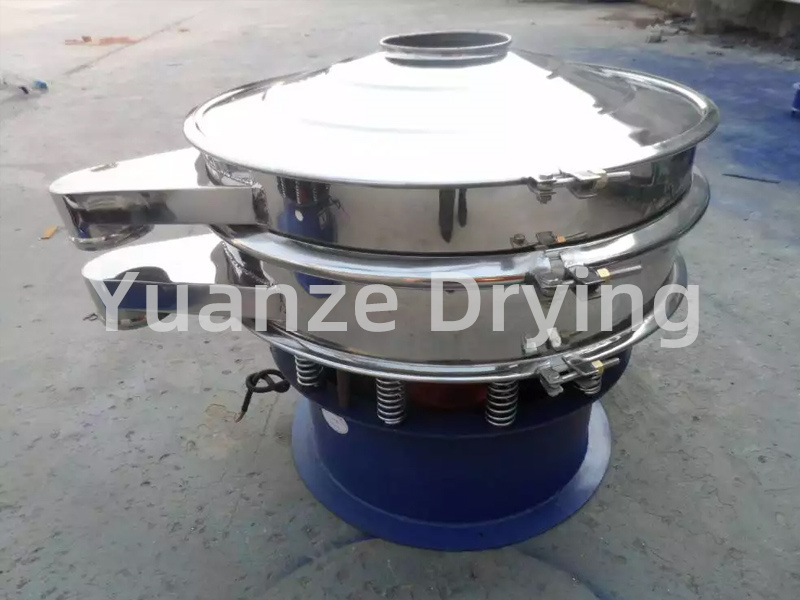

ZS series circular vibrating screen

ZS series circular vibrating screen

1. The ZS series layered screen is suitable for flow operations and is an ideal equipment for continuous discharge of particles with varying proportions of size. 2. This machine consists of a hopper, an oscillation chamber, and an oscillation motor. This machine achieves material classification by adjusting the eccentricity of the oscillating motor, and the size of the eccentric wheel of the oscillating motor can be adjusted. 3. The whole machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and is easy to move and maintain.

Description

Overview

1. The ZS series layered screen is suitable for flow operations and is an ideal equipment for continuous discharge of particles with varying proportions of size.

2. This machine consists of a hopper, an oscillation chamber, and an oscillation motor. This machine achieves material classification by adjusting the eccentricity of the oscillating motor, and the size of the eccentric wheel of the oscillating motor can be adjusted.

3. The whole machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and is easy to move and maintain.

Technical Parameter

model	Production capacity (kg/h)	Number of sieves passed (mesh)	Electric power (kW)	Spindle speed (r/min)	External dimensions (mm)	Weight (kg)
ZS-350	60-500	12-200	0.55	1380	540×540×1060	100
ZS-515	100-1300	12-200	0.75	1370	710×710×1290	180
ZS-650	180-2000	12-200	1.50	1370	880×880×1350	250
ZS-800	250-3500	5-325	1.50	1500	900×900×1200	300
